Parking brake wiring

Thread Tools

Search this Thread

  #1
Old 04-20-2020, 10:00 PM
734me's Avatar
Junior Member
Thread Starter
Join Date: Feb 2020
Posts: 20
Default Parking brake wiring

Can someone tell me what the “resistor” is for at the parking brake switch. And is it a resistor?

  #2
Old 04-21-2020, 10:50 AM
73shark's Avatar
Super Moderator
Join Date: Apr 2006
Location: KC, MO area
Posts: 3,981
Default

It's possible that it is a diode to limit the amount of current spike when the parking brake is engaged. If you could post a picture of it I might be able to tell from that. Or look it up in the schematic in the factory service manual.

  #3
Old 04-21-2020, 03:41 PM
734me's Avatar
Junior Member
Thread Starter
Join Date: Feb 2020
Posts: 20
Default

Originally Posted by 73shark
It's possible that it is a diode to limit the amount of current spike when the parking brake is engaged. If you could post a picture of it I might be able to tell from that. Or look it up in the schematic in the factory service manual.

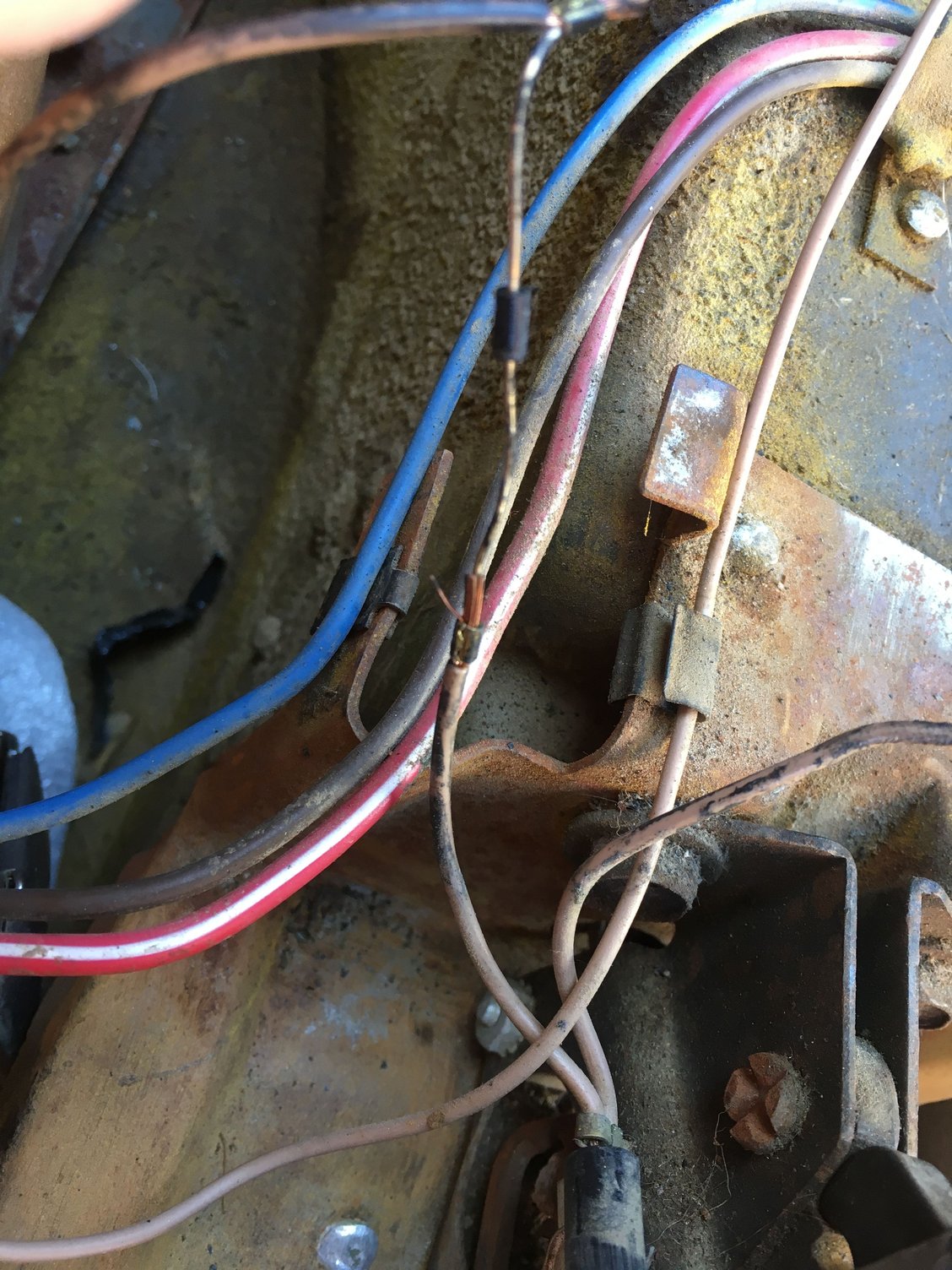

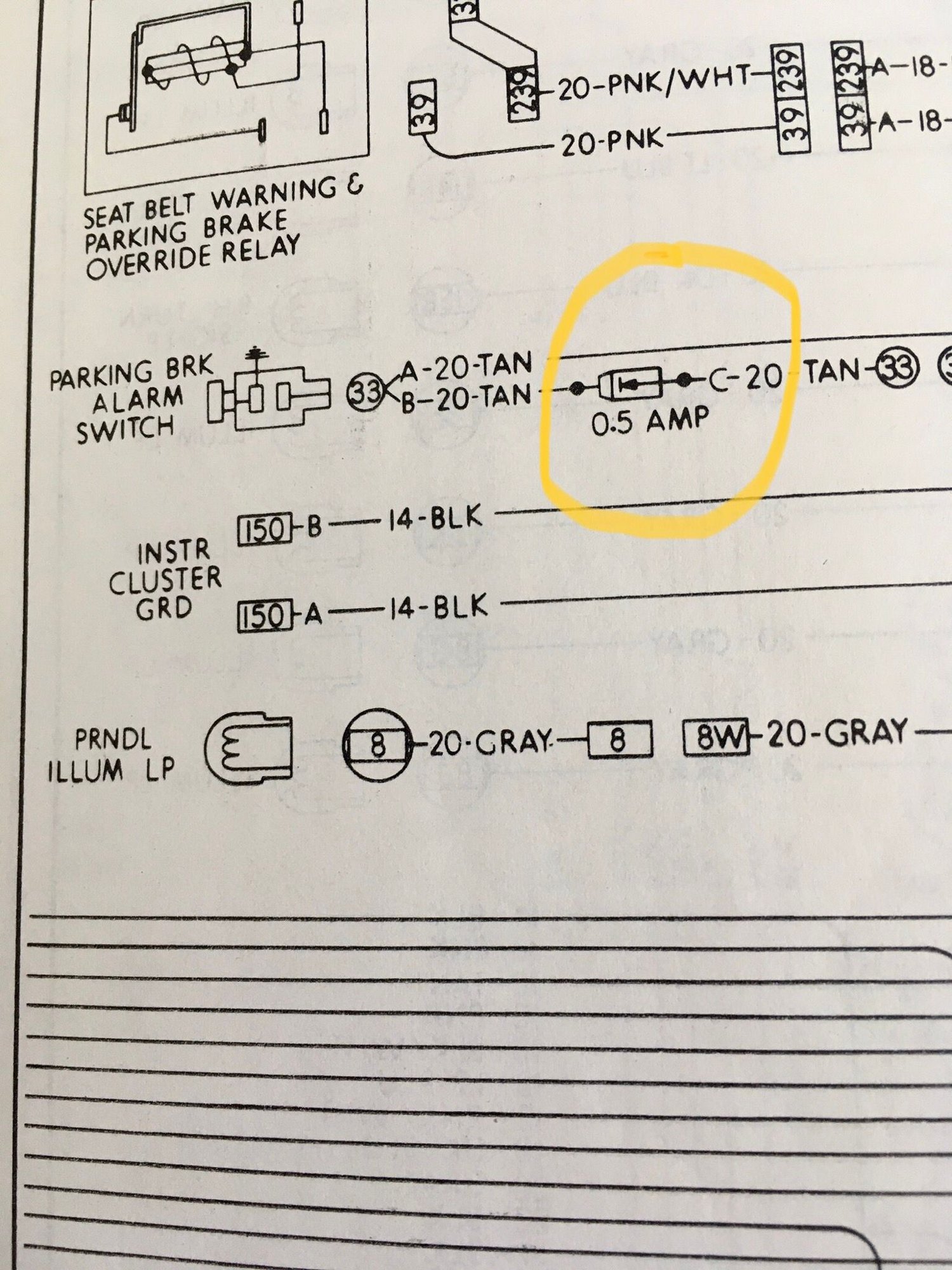

Here are some pictures:






  #4
Old 04-22-2020, 10:39 AM
73shark's Avatar
Super Moderator
Join Date: Apr 2006
Location: KC, MO area
Posts: 3,981
Default

Looks like a diode with a 0.5 amp capacity.
