I am working on my swap project and I wanted to check if anyone here would help me and share some precise information.
I am currently designing my button flywheel and also checking all the assembly adjustments in order to finalize the adapter plate design, see below:

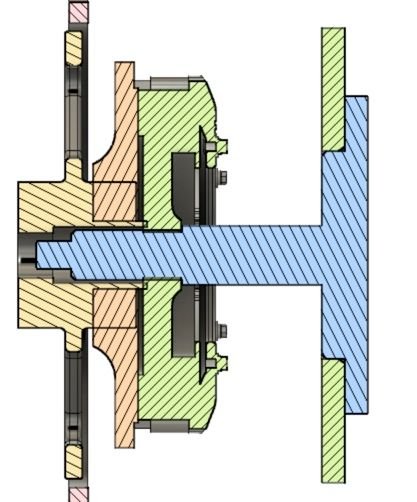

On the right, the blue piece is the gearbox, green piece is the bell housing. In the center, the green piece is the clutch assembly, orange is the flywheel. On the left, the yellow piece is the "starter flywheel" and the pink is part of the adapter plate.

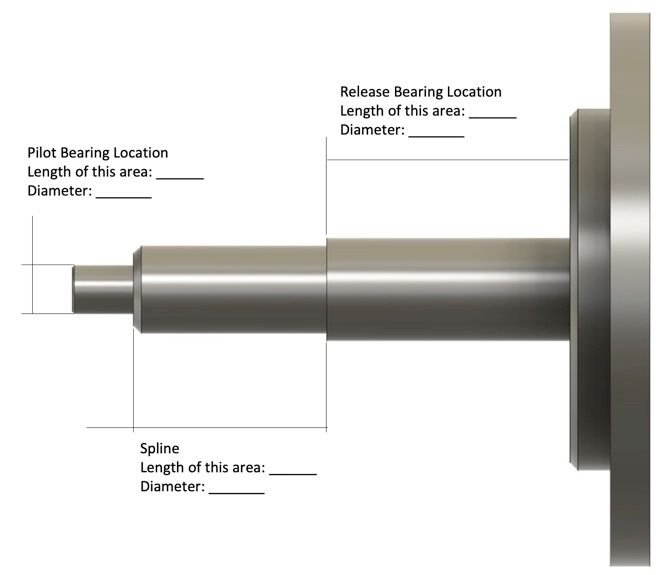

I used this picture to get the overall dimensions, which is the 159.5mm:
C4 - Engine Swap - Gearbox Measurements
